Tools hard coating machine

Product brief introduction

Tools hard coating machine is designed for the tools, knives to coat super hard protective film. It can coat TiN、TiC、TiCN、TiAlN、TiAlCN、TiCrN、TiCrCN、TiAlCrN、multi-layer ultra-hard film etc.

>> Email: info@hcvac.com or Message Online

Tools hard coating machine designed for hard and super hard protective coatings on tools, cutter and mould. The vacuum sealing of chamber and the interior design and material of moving parts are under consideration of high-temperature bear, assembling high efficiency roundness arc evaporation source or rectangular flat arc evaporation source. We can also install hollow cathode gun and impact resistance bias power supply, to ensure the density and reactivity of plasma, increase the compactness and adhesion of coatings. Substrates can be three-dimensional motion, to enhance the uniform of coating. The full automatic control processing is steady and perfect.

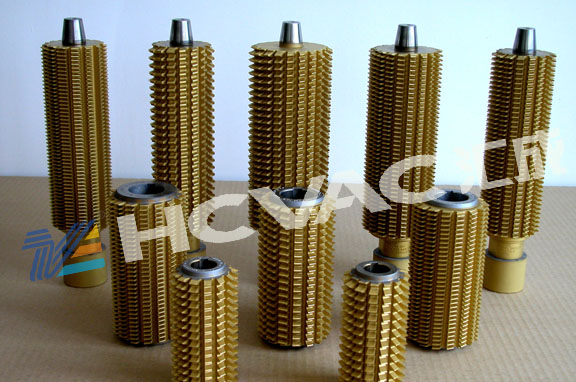

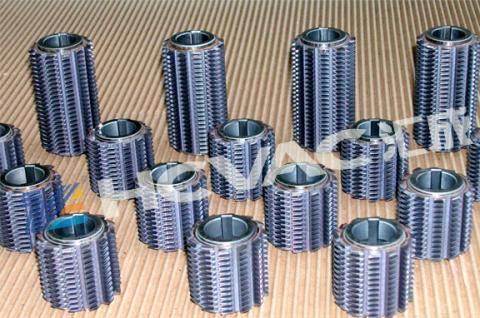

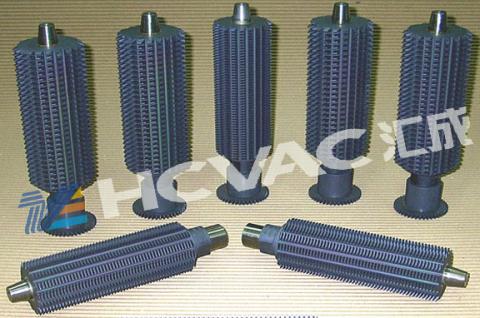

It can deposit TiN,TiC,TiCN,TiAlCN,TiCrN,TiCrCN,TiAlCrN, multilayer super hard coatings, which is used in precision mould industry(dies, shear mould, standard mould and moulding mould etc), tool industry(drill, hard alloy, milling cutter, broaches, screw tap and gear cutter etc .) and automobile industry(piston, piston rings and alloy wheels etc.).

Cutters, tools PVD coating properties:

Material	Thickness (μm)	Micro Hardness HV0.05	Friction Ratio	Usage Temperature(℃)	Deposition Temperature(℃)	Color
AlCrN	2 - 4	3000	0.55	1050	450 - 500	Gray
AlTiN/TiSiN	2 - 4	3500	0.4	1100	450 - 550	Copper
AlTiN	2 - 4	3500	0.6	850	450 - 550	Dark blue
AlTiCrN	2 - 4	3200	0.55	850	450 - 550	Silver
t-aC	0.5 - 2	5000	0.15	750	300	Dark gray
TiN	2 - 4	2800	0.5	500	450 - 550	Gold
TiCN	1 - 3	3000	0.2	300	450 - 550	Steel gray
TiCrN	2 - 4	2200	0.55	600	450 - 550	Gray
TiAlCrN	2 - 4	1800 - 3000	0.6	800	450 - 550	Gray
TiAlN	2 - 4	3200	0.6	800	450 - 550	Gray
TiAlCN	2 - 4	2800	0.4	700	450 - 550	Gray
CrN	3 - 5	2300	0.55	700	450 - 550	Gray
a-C:H:W + a-C:H	1.5 - 3	2800	0.15	300	200	Dark gray
B4C	1 - 2	3400	0.55	800	200	Black
ZrN	2 - 4	2600	0.55	500	300	Gold
Ti(C,N) + MoS2	2 - 4	2000	0.03	500	450	Black

HCSH-380	Usable plasma volume	Application technology	target
	Ø400x H450mm	CMARC	2pcs×3
	Production cycle	Standard coating	Custom coating
	3-5hours/cycle	TiN，CrN，AlTiN，AlCrN	TiCN，TiAlCrN，TiAlSiN , DLC
	Hardware	Software	Production/batch
	Magnetic molecular pump Pulse BIAS supply / HIPIMS Plasma etching	Industrial PLC system Industrial PC system HCVACExpert remote diagnosis system	EndMills D4×50mm=864 D10×75mm=264 Insert D18×5mm=1440 Hobs D80×80mm=15
HCSH-600	Usable plasma volume	Application technology	target
	Ø400x H450mm	CMARC	2pcs×3
	Production cycle	Standard coating	Custom coating
	4-6hours/cycle	TiN，CrN，AlTiN，AlCrN	TiCN，TiAlCrN，TiAlSiN , DLC
	Hardware	Software	Production/batch
	Magnetic molecular pump Pulse BIAS supply / HIPIMS HCD plasma etching	Industrial PLC system Industrial PC system HCVACExpert remote diagnosis system	EndMills D4×50mm=1920 D10×75mm=512 Insert D18×5mm=3276 Hobs D80×80mm=40
HCSH-650	Usable plasma volume	Application technology	target
	Ø400x H450mm	CMARC	4pcs×3
	Production cycle	Standard coating	Custom coating
	3-6hours/cycle	TiN，CrN，AlTiN，AlCrN	TiCN，TiAlCrN，TiAlSiN , DLC
	Hardware	Software	Production/batch
	Magnetic molecular pump Pulse BIAS supply / HIPIMS Plasma etching	Industrial PLC system Industrial PC system HCVACExpert remote diagnosis system	EndMills D4×50mm=4032 D10×75mm=880 Insert D18×5mm=6400 Hobs D80×80mm=64
HCSH-900	Usable plasma volume	Application technology	target
	Ø400x H450mm	CMARC	6pcs×3
	Production cycle	Standard coating	Custom coating
	5-8hours/cycle	TiN，CrN，AlTiN，AlCrN	TiCN，TiAlCrN，TiAlSiN , DLC
	Hardware	Software	Production/batch
	Magnetic molecular pump Pulse BIAS supply / HIPIMS Plasma etching	Industrial PLC system Industrial PC system HCVACExpert remote diagnosis system	EndMills D4×50mm=8640 D10×75mm=2200 Insert D18×5mm=1200 Hobs D80×80mm=140

Type	name	colour	coating	Micro hardness （HV0.05）	Max. Usage temperature （℃）	Friction- (fretting) coefficient	Thickness （um）
Nitrogen ceramics	HAL	Black	ALTiN	3800	900	0.6	2.5±0.5
	HAL Plus	Black	ALTiN	3800	900	0.6	4±0.5
	HAL Mini	Black	ALTiN	3500	900	0.6	1.5±0.5
	HAL B	Atropurpureus	ALTiN	3600	900	0.6	2.5±0.5
	HAR	Silver	CrN	2000	700	0.3	3±0.5
	HAT	Golden	TiN	2400	600	0.5	3±0.5
	HAS	Bronze	AlTiSiN	3800	1000	0.4	3±0.5
	HATC	Gray	TICN	3500	400	0.2	2±0.5
	HATC Plus	Bronze	TICN	3200	400	0.25	2±0.5
	HART	Golden	CrTiN	2500	600	0.4	2.5±0.5
	HRA	Blue grey	AlCrN	3500	1000	0.4	4±0.5
	HRAT	Gray	AlTiCrN	3200	900	0.4	3±0.5
DLC	HCC	Black	CrN+W-C:H	2200	300	0.2	2±0.5
DLC	HCMC	Black	Cr+W-C:H+DLC	1800	300	0.1	2±0.5

Name

Low
alloy
steel

High
alloy
steel

Stainless
steel

Cast
iron

Copper

Bronze

Si<12%
Al alloy

Si>12%
Al alloy

Wood

Plastic

Drill

Drill
cutting

EndMill

Milling
tool

Turnin
insert

Hob

Slottin
cutter

Hob
slottin
cutter

Tap

HAL Plus

A-

HAL Mini

A-

HAL B

A-

HAR

A-

HAT

A-

HAS

A-

HATC

A-

HATC Plus

A-

HART

A-

HRA

A-

HRAT

A-

HCC

A-

HCMC

A-

A:Applicable of existing materials or processing environment

A-:Can be used in the materiial and processing environment

Applied Industries:

precision mould industry (Stamping die, die cut, standard mold, etc.), tools industry (drill, cemented cardide, milling head, broaches, taps and gear cutters etc. Auto industry (pistons, piston rings, alloy wheels etc.)

Widely appied in the engine parts, non-ferrous metal cutting tools, non-ferrous metals and stainless steel forming stamping dies, sliding seal parts, semiconductor industry molds, injection molds etc. Plastic manufacturing: extrusion molding, semiconductor industry: chip contact applications, position system components, racing car parts: valve parts, piston accessories, hydraulic parts/suspension/gearbox. Auto car industry: chassis parts,brake components, engine parts, transmission parts; engineering: wind power technology, aviation technology, medical technology etc.
