Improve friction, decrease abrasion
Industrial design to cope with the increasingly demanding engineering challenges. Including the growing need for durability, higher chemical and temperature loads and changes in the operating environment. In many cases, HC low friction and wear resistant coating is to ensure that the design and material combination , becoming a reality of favorable factors.
Extensive coating composition and performance technology
HC series of mechanical / industrial component vacuum coating machine provides PVD, CVD and PACVD processes for the selection of a variety of wear and low-friction coatings for the most critical applications of mechanical components.
HCVAC has been committed to providing a number of industry engineering solutions, and establishing a complete set of performance based on the application technology.
Engineering Technology
HCVAC provides a complete set of engineering application and technical support to customer research and development team, that includes basic materials, wear mechanism, lubrication, temperature and external factors, etc.in order to recommend the most suitable coating process and pre/after coating treatment processing technique.
Not just a coating
In order to achieve the best operating performance,our HCVAC vacuum has rich experience in combining the surface treatment technology with the pre/after coating treatment technique, so that the coating performance can be optimized.

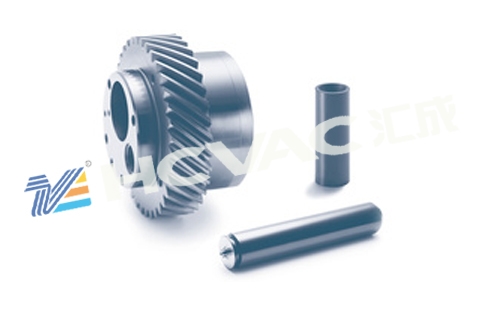

In the case of corrosion resistance and hardness of the higher requirements, the Mechanical / industrial components vacuum coating machine, needs do nickle based plating
process for these components, this process contributes to its surface roughness.
| HCSH-380 | Usable plasma volume | Application technology | target |
| Ø400x H450mm | CMARC | 2pcs×3 | |
| Production cycle | Standard coating | Custom coating | |
| 3-5hours/cycle | TiN，CrN，AlTiN，AlCrN | TiCN，TiAlCrN，TiAlSiN , DLC | |
| Hardware | Software | Production/batch | |
| Magnetic molecular pump Pulse BIAS supply / HIPIMS Plasma etching |
Industrial PLC system Industrial PC system HCVACExpert remote diagnosis system |
EndMills D4×50mm=864 D10×75mm=264 Insert D18×5mm=1440 Hobs D80×80mm=15 |
|
| HCSH-600 | Usable plasma volume | Application technology | target |
| Ø400x H450mm | CMARC | 2pcs×3 | |
| Production cycle | Standard coating | Custom coating | |
| 4-6hours/cycle | TiN，CrN，AlTiN，AlCrN | TiCN，TiAlCrN，TiAlSiN , DLC | |
| Hardware | Software | Production/batch | |
| Magnetic molecular pump Pulse BIAS supply / HIPIMS HCD plasma etching |
Industrial PLC system Industrial PC system HCVACExpert remote diagnosis system |
EndMills D4×50mm=1920 D10×75mm=512 Insert D18×5mm=3276 Hobs D80×80mm=40 |
|
| HCSH-650 | Usable plasma volume | Application technology | target |
| Ø400x H450mm | CMARC | 4pcs×3 | |
| Production cycle | Standard coating | Custom coating | |
| 3-6hours/cycle | TiN，CrN，AlTiN，AlCrN | TiCN，TiAlCrN，TiAlSiN , DLC | |
| Hardware | Software | Production/batch | |
| Magnetic molecular pump Pulse BIAS supply / HIPIMS Plasma etching |
Industrial PLC system Industrial PC system HCVACExpert remote diagnosis system |
EndMills D4×50mm=4032 D10×75mm=880 Insert D18×5mm=6400 Hobs D80×80mm=64 |
|
| HCSH-900 | Usable plasma volume | Application technology | target |
| Ø400x H450mm | CMARC | 6pcs×3 | |
| Production cycle | Standard coating | Custom coating | |
| 5-8hours/cycle | TiN，CrN，AlTiN，AlCrN | TiCN，TiAlCrN，TiAlSiN , DLC | |
| Hardware | Software | Production/batch | |
| Magnetic molecular pump Pulse BIAS supply / HIPIMS Plasma etching |
Industrial PLC system Industrial PC system HCVACExpert remote diagnosis system |
EndMills D4×50mm=8640 D10×75mm=2200 Insert D18×5mm=1200 Hobs D80×80mm=140 |
| Type | name | colour | coating | Micro hardness （HV0.05） |
Max. Usage temperature （℃） |
Friction- (fretting) coefficient |
Thickness （um） |
| Nitrogen ceramics |
HAL | Black | ALTiN | 3800 | 900 | 0.6 | 2.5±0.5 |
| HAL Plus | Black | ALTiN | 3800 | 900 | 0.6 | 4±0.5 | |
| HAL Mini | Black | ALTiN | 3500 | 900 | 0.6 | 1.5±0.5 | |
| HAL B | Atropurpureus | ALTiN | 3600 | 900 | 0.6 | 2.5±0.5 | |
| HAR | Silver | CrN | 2000 | 700 | 0.3 | 3±0.5 | |
| HAT | Golden | TiN | 2400 | 600 | 0.5 | 3±0.5 | |
| HAS | Bronze | AlTiSiN | 3800 | 1000 | 0.4 | 3±0.5 | |
| HATC | Gray | TICN | 3500 | 400 | 0.2 | 2±0.5 | |
| HATC Plus | Bronze | TICN | 3200 | 400 | 0.25 | 2±0.5 | |
| HART | Golden | CrTiN | 2500 | 600 | 0.4 | 2.5±0.5 | |
| HRA | Blue grey | AlCrN | 3500 | 1000 | 0.4 | 4±0.5 | |
| HRAT | Gray | AlTiCrN | 3200 | 900 | 0.4 | 3±0.5 | |
| DLC | HCC | Black | CrN+W-C:H | 2200 | 300 | 0.2 | 2±0.5 |
| HCMC | Black | Cr+W-C:H+DLC | 1800 | 300 | 0.1 | 2±0.5 |
| Name | Low alloy steel |
High alloy steel |
Stainless |
Cast iron |
Copper | Bronze | Si<12% Al alloy |
Si>12% Al alloy |
Wood | Plastic | Drill | Drill cutting |
EndMill | Milling tool |
Turnin insert |
Hob | Slottin cutter |
Hob slottin cutter |
Tap |
| HAL Plus | A- | A | A- | A | A | A | A- | A | A | A | A | ||||||||
| HAL Mini | A- | A | A | A | A- | ||||||||||||||
| HAL B | A- | A | A- | A | A- | A- | A | A- | A- | ||||||||||
| HAR | A | A | A | A | A- | ||||||||||||||
| HAT | A | A | A | A- | A- | A- | A- | A- | A- | A- | A- | A- | |||||||
| HAS | A- | A- | A | A | A | A | |||||||||||||
| HATC | A | A | A- | ||||||||||||||||
| HATC Plus | A | A | A- | A | |||||||||||||||
| HART | A | A- | A- | A- | A- | A | A | A | A | A | A- | A- | A- | A- | A- | ||||
| HRA | A- | A | A | A- | A- | A- | A- | A- | A- | A- | A- | A- | A- | A- | A- | ||||
| HRAT | A | A | A | A- | A- | A- | A- | A- | A- | A- | A | A | A | A | A | A | A | A | |
| HCC | A | A | A- | A | A | A | |||||||||||||
| HCMC | A | A | A- | A | A | A- | |||||||||||||
| A:Applicable of existing materials or processing environment | |||||||||||||||||||
| A-:Can be used in the materiial and processing environment | |||||||||||||||||||
Industry;
Aerospace;
Racing.
