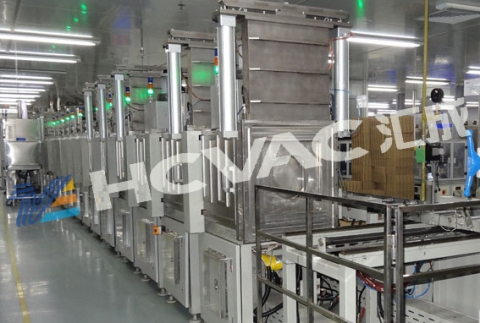

Super capacitor device and lithium batteries by vacuum drying production line is designed for drying heat sensitive, easy to decompose and easily oxidized materials and design, widely by in the pharmaceutical, chemical, food, electronics and other industries.
Full automatic vacuum drying equipment adopts the integral design, the whole process is fully automatic operation, the control system will be in accordance with the preset parameters to coordinate the various actions, monitoring the production conditions. At the same time, the temperature and vacuum degree of each point can be read in real time, the output, save, and facilitate the analysis and revision of the production conditions, to achieve the best quality conditions, and ensure the quality of the stability of the key technologies.
Features：
Energy saving - to reduce labor costs, special insulation systems and built-in efficient heat source, energy consumption is only 20% of the traditional process
Efficiency - productivity are 8 to 6 times of the traditional process
Automatic character- full automatic intelligent control system for the entire process of monitoring, industrial 4 assembly line
Quality - the whole vacuum state, to ensure product consistency, improve the performance and technical indicators, reduce the rate of defective products
| Mode | HCVDL-2000 | HCVDL-4500 | HCVDL-10000+ |
| Vacuum Structure | Vacuum system+Temperature control system+Nitrogen filling system+Sealing system+Driving system+Top and bottom feeding system | ||
| Product | Power battery | Super capacitor | Lithium battery |
| Per Production(pcs/22h) | 10000～20000 | 5000～10000 | ≥350000 |
| Ultra Pressure(Pa) | ≤0.5 | ≤0.5 | ≤1 |
| Working Pressure(Pa) | ≤50 | ≤50 | ≤50 |
| Working Temperature(℃) | 120±3 | 170±3 | 95±3 |
| Moisture content after baking(ppm) | ≤50 | ≤50 | ≤50 |
Remark：The above parameters are referred, all specifications and parameters can be customized according to customer demand.
•Medium high-end super capacitor</br>
•Lithium ion battery</br>
•Oil immersed transformer</br>
•Mutual inductor</br>
•Capacitor</br>
•High pressure casing products
