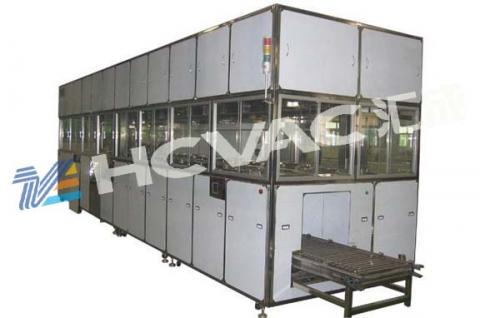

The cleaning machine is an automatic ultrasonic cleaning machine, mainly by the ultrasonic transducer, generator, cleaning tank, an overflow device, upper and lower throwing device, automatic temperature control heating, electric control system, PLC control, touch screen frame, the sealing cover.
The cleaning machine is a device consisting of 4 sets of stainless steel ultrasonic cleaning tank composed of a set of continuous work, cleaning basket operators will with the work piece into the cleaning tank. The set time is reached in the cleaning basket to the cleaning tank, on the work piece cleaning wash, throwing, lifting, finish the work piece cleaning; cleaning is completed by Longman mechanical hand washing basket to the discharging platform, when discharging induction to the cleaning basket, automatic feeding, by the artificial will unload work pieces to complete the entire process. According to the actual situation, the user to set the time, alarm and other parameters.

Power equipment:
1 work ability: continuous operation: this equipment can work 24 hours a day continuous operation
2 work environment:
3 the environment temperature: temperature 0 ℃ ~ 47 ℃ is most suitable
4 relative humidity: ≤ 90%
5 the environment ventilation: good

6 water source, the gas supply provided by the user

Equipment safety:
1.Electrical properties: grade E, and have a good grounding, impedance 500M above
2.A safety device, protection operation operator from harm
3.In the electric control box panel and the operation post operation of the switch with emergency stop switch

Equipment nameplate:
Name plate and each button, indicator are used Chinese logo, various functions to meet the requirements of use.
