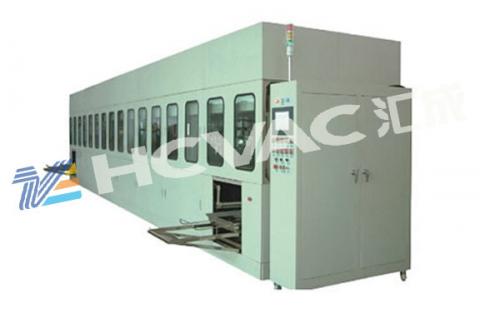

The cleaning machine is an automatic ultrasonic cleaning machine, mainly by the ultrasonic transducer, generator, cleaning tank, an overflow device, upper and lower throwing device, automatic temperature control heating, electric control system, PLC control, touch screen frame, the sealing cover.
The cleaning machine is a device consisting of 4 sets of stainless steel ultrasonic cleaning tank composed of a set of continuous work, cleaning basket operators will with the work piece into the cleaning tank. The set time is reached in the cleaning basket to the cleaning tank, on the work piece cleaning wash, throwing, lifting, finish the work piece cleaning; cleaning is completed by Longman mechanical hand washing basket to the discharging platform, when discharging induction to the cleaning basket, automatic feeding, by the artificial will unload work pieces to complete the entire process. According to the actual situation, the user to set the time, alarm and other
The basic principle of ultrasonic:
Generated by ultrasonic generator 28KHZ-40KHZ ultra audio frequency electrical signal, converted into mechanical oscillation with the frequency of the piezoelectric transducer, and the ultra-audio frequency form of mechanical wave radiation in the cleaning solution. Because of ultra-audio frequency of mechanical wave propagation zone of positive pressure and negative pressure zone alternatively, produce many more than 1000 micro bubble pressure and keep blasting, the formation of cleaning the surface of the small local high-pressure bombardment, making the object surface and the gap of dirt off, the "cavitation effect" of the ultrasonic cleaning is the unique
Product features
■ electric total station lifting frame lifting a work piece and shake up and down the cleaning.
■ cylinder surface aerodynamic mobile transport work, lifting weight, stable moving, advanced and reasonable structure
■ circulation type filter cartridge, automatic conveying work piece support, complete the continuous flow operation
■ tunnel type drying oven, drying the work piece completely
■ liquid storage box test, oil system and sound, light and pH of cleaning agent
■ full program control of PLC and touch screen man-machine interface operation
■ fully closed, the ventilation system intact, clean environment clean..
|
