The device has 6 main functions of groove, the equipment is provided with 60 ultrasonic vibrator, medium cleaning water
Note: the equipment in the L×W×Hmm; refer to: length×width×height  unit: mm
Application: hardware removal, degreasing cleaning work piece
The ability of the equipment cleaning rhythms:4-6 min/ basket (adjustable)
Structure:

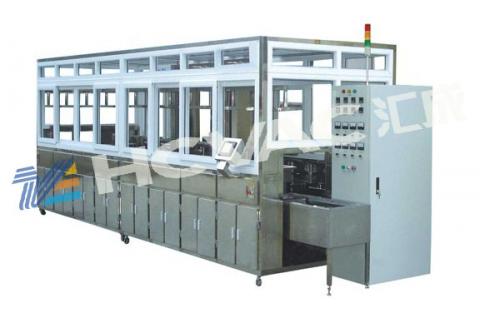

The cleaning machine is a fully automatic, the cleaning process by PLC+ touch screen control, respectively 6 and 2 made of SUS304 stainless steel by ultrasonic cleaning tank, 3 ultrasonic rinse tank, 1 slow off the sink and automatic loading and unloading platform consists of a continuous cleaning equipment, the operator will place the cleaning basket in a work piece feeding table, sensor, automatic cleaning basket delivery above the feeding station, conveyors, sensor, PLC programmable multi arm manipulator will wash basket successively sent to the step groove, on the work piece cleaning, rinsing, slow dehydration after delivery to the discharge end, finally the operator only in the end of the work piece material can be removed. This washing machine to complete the cleaning process. The entire process, are all closed structure and good smoke exhaust device. See the following instructions.
Technological process
• cleaned and purpose: used for metal except washing dewatering oil, decontamination.
• process: on the material→crude ultrasonic washing→ultrasonic cleaning→ultrasonic rinsing→ultrasonic rinsing→ultrasonic rinsing→slow dehydration→blanking
