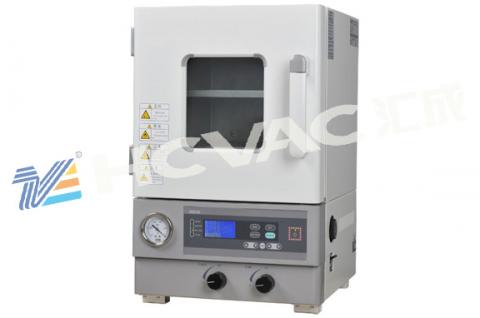

Vacuum drying box is widely used and biochemistry, chemical pharmaceutical, medical and health, agricultural research, environmental protection and other research fields, for drying, baking, disinfection and sterilization of various types of glass containers for. Particularly suitable for fast and efficient drying process for drying heat sensitive, easily decomposed, easily oxidized substance and complexity of the component items.
Product details:
Compared with the conventional drying technology has the following advantages:
• vacuum environment greatly reduces the boiling point to expel liquid, so the vacuum drying can be easily applied to the heat sensitive material;
• not easily dried samples, such as powder or other granular samples, the use of vacuum drying method can effectively shorten the drying time;
• Machinery parts of various complex structures or other porous samples after cleaning the use of vacuum drying method, completely dry without leaving any residue;
• use more secure
| NO | The box size mm | Appearance size mm | The interlayer distance mm | Baking pan piece | Vacuum degree Mpa | Highest temperature℃ | Steam pressure Mpa |
| 1 | 1160×1400×1200 | 1170 ×1720 ×1700 | 120 | 24 | -0.1 | 80 | 0.2-0.6 |
| 2 | 1160×1400×1250 | 1500 ×1700 ×1950 | 32 | ||||
| 3 | 1160×2000×1450 | 1700 ×2320 ×1770 | 48 | ||||
| 4 | 1160×2000×1750 | 1700 ×2320 ×2250 | 60 | ||||
| 5 | φ600 ×976 | 1135× 810× 1020 | 4 | ||||
| 6 | φ800× 1247 | 1700 ×1045 ×1335 | 8 | ||||
| 7 | φ1000 ×1527 | 1693 ×1190 ×1500 | 12 | ||||
| 8 | φ1400 ×2054 | 2386 ×1675 ×1920 | 32 | ||||
| 9 | According to customer requirements, design, manufacture kinds of non-standard vacuum dryer, dimensions for reference. | ||||||
