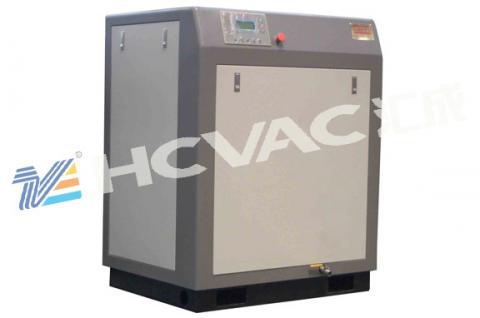

Air compressor

Product brief introduction

Screw compressor for domestic conditions and operating environment and the design and manufacture, has the outstanding performance, easy installation, flexible operation and high productivity features; can satisfy many needs, and escort for the production

>> Email: info@hcvac.com or Message Online

Design, production and testing according to strict standards. And the patent injection screw rotor group to provide unified, can ensure long-term stable operation and reduce energy consumption, to help customers save the cost of production.

•The core components of host provides a unified by the group company, using the world's most advanced technology for rotor;
•The patent type line, the optimal speed, always in the most efficient operation state, energy efficiency significantly ahead of similar products in the market;
•High rigidity design of the rotor, prevent leakage, ensure long life and reliable operation.

•Sophisticated design and transmission system of long time durability test;
•Transmission type of the world's top brands, high transmission precision, direct drive machine adopts imported brands of helical gear, reliable operation, high transmission efficiency.
•Direct drive machine adopts imported brands of helical gear, reliable operation, high transmission efficiency.

NO	exhaust pressure （Mpa）	exhaust volume （m³/min）	energy efficiency rating	power（kW）	noise （dB(A)）	appearance size （mm）	weight（kg）	outlet pipe diameter （mm）	inlet diameter （mm）
1	0.7	10.9	2	55	72±2	2150×1250×1700	1260	50	-
	0.8	10.4	2
	1	9.4	2
	1.3	8.6	-
2	0.7	14.5	2	75	72±2	2150×1250×1700	1860	50	-
	0.8	13.8	2
	1	12.6	2
	1.3	11.2	-
3	0.7	17	2	90	75±2	2150×1250×1700	2110	50	-
	0.8	16.5	2
	1	15.2	2
	1.2	14	-
4	0.7	22	2	110	76±2	2595×1450×1900	2590	65	40
	0.8	20.8	2
	1	18.2	2
	1.3	16	-
5	0.7	25.8	2	132	77±2	2595×1450×1900	2760	65	40
	0.8	24.2	2
	1	21.2	2
	1.3	18.5	-
6	0.7	29.5	2	160	77±2	2700×1550×1920	3210	65	50
	0.8	28.9	2
	1	26.8	2
	1.3	22.8	-
7	0.7	34.5	2	180	77±2	2700×1550×1920	3710	80	50
	0.8	32	2
	1	30	2
	1.3	27.5	-
8	0.7	37.5	2	200	78±2	2900×1700×2000	4010	80	50
	0.8	35.5	2
	1	32.5	2
	1.3	29	-
9	0.7	46	2	250	78±2	3200×1950×2020	4810	100	50
	0.8	44.5	2
	1	41	2
	1.3	37	-
10	0.7	50.7	2	280	82±2	3200×1950×2020	4810	100	50
	0.8	50	2
	1	42	2
	1.3	38.3	-
11	0.7	59	2	315	84±2	4650×2300×2400	5210	125	50
	0.8	58	2
	1	49	2
	1.3	42	-
12	0.7	67	2	355	86±2	4650×2300×2400	5610	125	50
	0.8	66	2
	1	56	2
	1.3	46	-
13	0.8	73	2	400	81±2	4450×2140×2250	9400	DN150	G2"
	1	63	2
	1.3	53	2
	-	-	-
14	0.8	81	2	450	81±2	4450×2140×2250	9400	DN150	G2"
	1	71	2
	1.3	60	2
	-	-	-
15	0.8	89	2	500	81±2	4450×2140×2250	9400	DN150	G2"
	1	79	2
	1.3	67	2
	-	-	-
16	0.8	100	2	560	81±2	4450×2140×2250	9400	DN150	G2"

Widely used in iron and steel, electric power, metallurgy, shipbuilding, electronics, textile, mining, chemical, petroleum, light industry, papermaking, printing, machinery manufacturing, food and medicine, traffic facilities, casting coating, ocean terminal, auto industry, aerospace, military technology, infrastructure and other fields.
