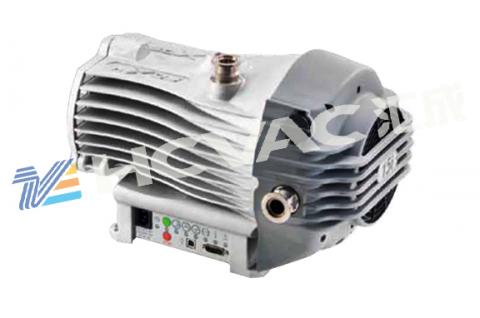

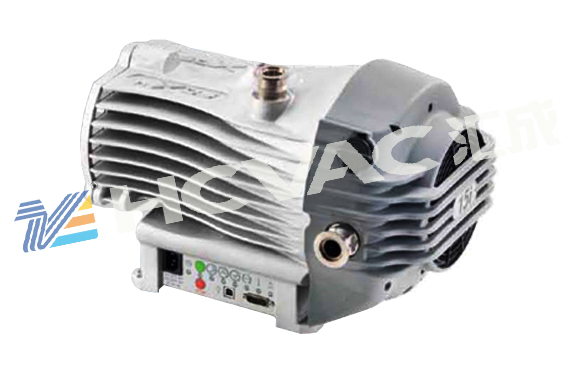

nXDS pump improve on the basis of traditional XDS pumps, improve the pumping speed , reducing the ultimate pressure , power consumption and noise. Pumping condensable gas ballast allows vapor , including water , solvents, dilute acids and alkalis . nXDS pump also uses the latest end sealing technology, significantly extending the tip seal replacement intervals. Integrated input voltage inverter with automatic sensing function driver optimized to provide the overall pumping performance , nXDS pump can be completely on-site maintenance.
Features and Benefits :
• vacuum enclosure without using a lubricant , completely sealed to ensure thorough cleaning and dry vacuum , to prevent cross- contamination
• No pressure to vacuum seal allows complete isolation bearings , thereby preventing the attack process , the bearing can be run at lower temperatures, the use of longer
• Simple one-sided roller layout and innovative design combined motor and bearings , just the minimum level of special tools , you can achieve easy field service , thus reducing operating costs as much as possible uptime
• Improved motor and transmission efficiency, reduces power consumption and operating costs
• Advanced interface provides a variety of traditional , analog and digital control method , which enables remote control via USB, RS232 or RS485 / monitor
| Model | nXDS6i | nXDS10i | nXDS15i | nXDS20i |
| Standard rotary speed | 1800 rpm | 1800 rpm | 1800 rpm | 1800 rpm |
| Outlet | 6.8 m3h-1/4.0 ft3min-1 | 12.7 m3h-1/7.5 ft3min-1 | 17.1 m3h-1/10.1 ft3min-1 | 28.0 m3h-1/16.5 ft3min-1 |
| Peak pumping speed | 6.2 m3h-1/3.6 ft3min-1 | 11.4 m3h-1/6.7 ft3min-1 | 15.1 m3h-1/8.9 ft3min-1 | 22.0 m3h-1/13.0 ft3min-1 |
| Limit vacuum（total pressure） | 0.020 mbar / 0.015 Torr | 0.007 mbar / 0.005 Torr | 0.007 mbar / 0.005 Torr | 0.030 mbar / 0.022 Torr |
| Minimum standby rotation speed | 1200 rpm | 1200 rpm | 1200 rpm | 1200 rpm |
| Speed control precision (expressed as a percentage at full speed | 0.01 | 0.01 | 0.01 | 0.01 |
| Pumping speed with Min speed | 4.1 | 7.5 | 9.9 | 10 |
| The maximum continuous air inlet pressure | 200 mbar | 200 mbar | 200 mbar | 50 mbar |
| Motor power（one phase） | 260 W | 280 W | 300 W | 260 W |
| Power connection（one phase） | IEC EN60320 C13 | IEC EN60320 C13 | IEC EN60320 C13 | IEC EN60320 C13 |
| recommended fuse | 10A，250Vac rms | 10A，250Vac rms | 10A，250Vac rms | 10A，250Vac rms |
| Weight | 26.2 kg / 58 lb | 25.8 kg / 57 lb | 25.2 kg / 56 lb | 25.6 kg / 56 lb |
| intake flange | NW25 | NW25 | NW25 | NW25 |
| Vent flange | NW25 | NW25 | NW25 | NW25 |
| Noise level | 52 dB(A) | 52 dB(A) | 52 dB(A) | 52 dB(A) |
| Inlet flange vibration resistance | < 4.5 mms-1 (rms) | < 4.5 mms-1 (rms) | < 4.5 mms-1 (rms) | < 4.5 mms-1 (rms) |
| Sealing (static) | < 1x10-6 mbar ls-1 | < 1x10-6 mbar ls-1 | < 1x10-6 mbar ls-1 | < 1x10-6 mbar ls-1 |
| operating temperature range | 10 to 40 °C / 41 to 104 °F | 10 to 40 °C / 41 to 104 °F | 10 to 40 °C / 41 to 104 °F | 10 to 40 °C / 41 to 104 °F |
General Cleaning pumping applications;
A scanning electron microscope - SEM;
Beam lines and high-energy physics;
Former stage turbine pumps;
Ultra-high-speed centrifuge;
Cladding;
Cryogenics;
Degassing / curing - oil, epoxy resin;
Distillation / extraction / filtration;
Freeze-dried;
Furnaces;
Gel drying;
Lab bench vacuum;
Lasers, gas recovery and recycling;
Helium leak detector;
Load lock and transfer chamber;
Rare gas recirculation;
Rare gas recovery;
Refrigeration manufacturing;
Research and development;
Centrifugal rotary evaporator;
SEM / FIB (ion beam repair);
Solvent recovery;
Surface Science Instruments
