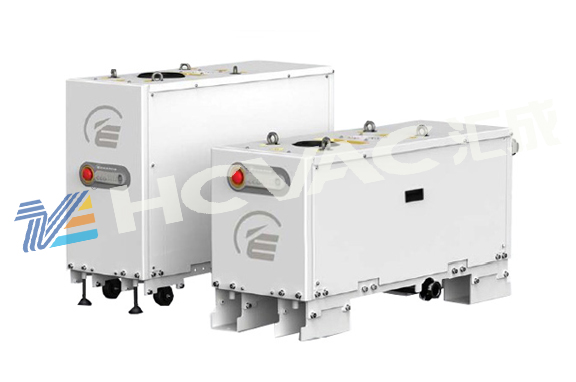

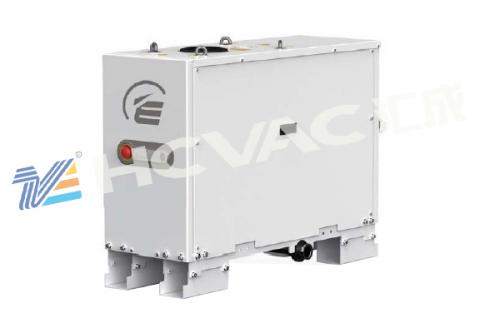

► Designed for high availability
The patented helical rotor design provides superior pumping speed , it is part of an advanced thermal management system , you can maximize pump performance and seal life bearings and motors to ensure that the pump has a long service life.
► widely used in various applications
GXS pump also offers a purge options , filters, header tank , inlet isolation valve and silencer , large flow of these parts and we specialize in providing the purge and solvent flush accessory together , can make the inside of the pump to keep clean , no need to disassemble for cleaning.
► long maintenance intervals , for the convenience
Long life is not oxidized gearbox oil maintenance intervals can be extended to five years. Quick connect device interface can accelerate the speed of the pump installation and replacement , thereby improving plant uptime .
► low running costs
The use of advanced sealing technology customization efficient motor and drive system greatly reduces power consumption. Minimal cooling water and purge gas demand and improved powertrain technology together to achieve a long maintenance intervals and requires little maintenance operation.
► impact on the workplace and the environment minimal
GXS pump incredibly compact . Even without the use of silencers, advanced helix rotor design can achieve extremely quiet , low- vibration operation .
► Simple installation and operation
GXS pump is easy to scroll through the wheels in place or using a forklift upgrade in place , with the joints and repair of equipment and processes provided by means of a connection , simply click the button to run .
► suitable for integration into larger systems
As standard , GXS pump and its combination with serial (RS232) communication and LAN -based network services . Optional modules to increase the parallelism ( digital I / O) and Profibus control functions.
| Mode | GXS160 | GXS250 | GXS160/1750 | GXS250/2600 |
| Peak pumping speed | 160 m3h-1 | 250 m3h-1 | 1200 m3h-1 | 1900 m3h-1 |
| (95 cfm) | (148 cfm) | (706 cfm) | (1118 cfm) | |
| Limit pressure | 1.2 x 10-2 mbar | 9 x 10-3 mbar | 7 x 10-4 mbar | 5 x 10-4 mbar |
| With purging | (9 x 10-3 Torr) | (6.8 x 10-3 Torr) | (5.3 x 10-4 Torr) | (3.8 x 10-4 Torr) |
| Limit pressure | 7 x 10-3 mbar | 4 x 10-3 mbar | 7 x 10-4 mbar | 5 x 10-4 mbar |
| Without purging | (5.3 x 10-3 Torr) | (3 x 10-3 Torr) | (5.3 x 10-4 Torr) | (3.8 x 10-4 Torr) |
| Full power | ||||
| Limit pressure | 3.8 kW (5.1 hp) | 4 kW (5.4 hp) | 5.1 kW (6.8 hp) | 5.3 kW (7.1 hp) |
| Peak pump load | 5 kW (6.7 hp) | 9 kW (12.1 hp) | 7.4 kW (9.9 hp) | 9.7 kW (13 hp) |
| Entry linkage | ||||
| Small power/medium power | ISO63 | ISO63 | ISO100 | ISO160 |
| Medium power + | ISO100 | ISO100 | ISO100 | ISO160 |
| Exhaust connector | NW40 | NW40 | NW40 | NW40 |
| Cooling water | ||||
| Flow rate | 4 lmin-1 (1.1 galmin-1) | 4 lmin-1 (1.1 galmin-1) | 7 lmin-1 (1.9 galmin-1) | 7 lmin-1 (1.9 galmin-1) |
| Supply pressure（Max） | 6.9 bar (100 psig) | 6.9 bar (100 psig) | 6.9 bar (100 psig) | 6.9 bar (100 psig) |
| The pressure differential between the pump（Min） | 1 bar (14.7 psig) | 1 bar (14.7 psig) | 1 bar (14.7 psig) | 1 bar (14.7 psig) |
| Temperature | 5-40 °C (41-104 °F) | 5-40 °C (41-104 °F) | 5-40 °C (41-104 °F) | 5-40 °C (41-104 °F) |
| Quality | 305 Kg (672 lb) | 305 Kg (672 lbs) | 475 Kg (1047 lb) | 515 Kg (1035 lbs) |
| capacity | 0.7 l (0.2 gal) | 0.7 l (0.2 gal) | 1.4 l (0.4 gal) | 1.4 l (0.4 gal) |
| Browing air* | |
| pressure |
2.5-6.9 bar (36-100 psig) |
| small power |
12 slm |
| Medium power |
18-52 slm |
| High flow purge/solvent flushing supply pressure |
2.5-6.9 bar (36-100 psig) |
| Noise |
<64 dB(A) |
| Working temperature |
5-40 °C (41-104 °F) |
| Exhaust back pressure(Max) |
1400 mbar (20 psia) |
| System IP level |
31 |
| lubrication |
PFPE Drynert® 25/6 |
| Monitoring and control | |
| Standard |
front panel - instrument board |
|
serial - RS232 |
|
|
Ethernet Web server |
|
| Option |
parallel I/O - MicroTim |
|
Profibus DP |
|
|
Pump display terminal (PDT) |
|
|
FabWorks® |
|
* Purge gas information
Low power - only seal purge purge and AC high voltage
Medium Power - seal purge, purge inlet, variable exhaust gas ballast and purge (with exhaust pressure sensor)
Medium Power + - As a middle power, coupled with the high flow purge / solvent flush
Typical applications include:
Solar (silicon crystal growth, lamination); freeze-dried (pharmaceutical, food processing); disinfection (plasma); cladding layer (sticky roller, web coating, optical lens coating, architectural glass coating); metallurgy (heat treatment, VIM and VAR, casting, sintering); leak detection;
Food packaging; vacuum chamber evacuated; high purity gas cylinder filling.
