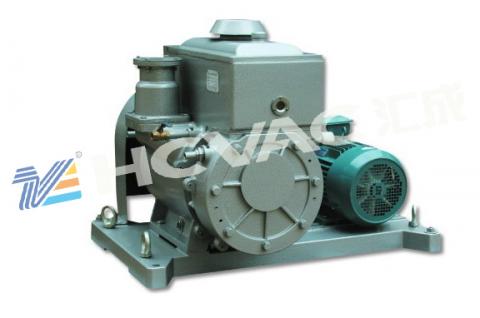

2X series vacuum pump is the two-stage structure, its performance from the high-pressure stage and low level of two parts, which is connected to the suction port of the vacuum container or vacuum equipment, a large amount of gas in the container when the suction and discharge operation. When the equipment to get the vacuum, high level exhaust valve will be closed, high level and the gas will be transferred to the second level, and by the second stage suction and discharge, vacuum equipment available certain vacuum. Technical parameters of the pump 6 × 10-2pa. Based on user usage, can be equipped with a vacuum booster pump, the pump as a backing pump, booster pump suction force due strengthened continuously pumping before the pump can make your equipment to obtain a higher vacuum.
| Type | ultimate vacuum | Pumping rate(L/S) | gas inlet Dia(mm) | Power(kw) | |
| Pa | Torr | ||||
| 2X-70B | 6x10-2 | 5x10-4 | 70 | 90 | 5.5 |
Analytical instruments; ultra-high-speed centrifuge; cladding; degassing / curing - oil, epoxy resin; distillation / extraction / filtration; freeze drying; furnace; cylinder filling / emptying; gel drying; glove box, drying furnace; lab bench vacuum; helium leak detector; load lock and transfer chamber; refrigeration manufacturing; research; rotating centrifugal evaporator; scanning electron microscope - SEM; SEM / FIB (ion beam repair); solvent recovery; surface scientific instruments; turbo molecular pump before.
