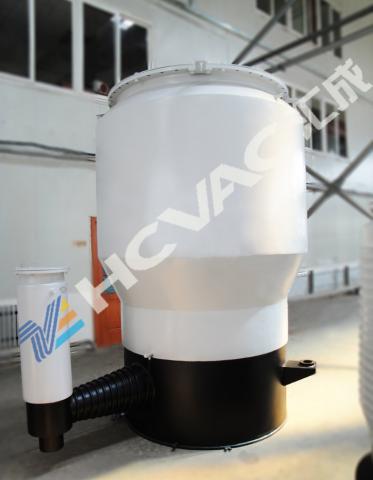

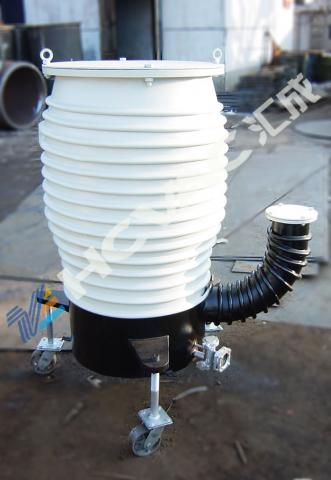

K and KT series oil diffusion vacuum pump is the main device to get vacuum（10-2Pa～10-5Pa.It is with valve, water-cooled baffle, pipes, mechanical pumps etc to make up a high vacuum pumping system, you can get working vacuum 10-2Pa ~ 10-4Pa, using liquid nitrogen cooling device, and bake them available to ultra-high vacuum (10-6Pa).
The pump is characterized by a large pumping capacity, pumping speed to choose from 480L / s to within 130000L / s range. It is added the oil view window, oil inlet and oil outlet hole,pump oil temperature measurement devices. KT2 manufactured using drawing process, reducing weld to increase strength, reduce the outgas. Heater with an electric wire and two electric board,choices available for ordering.
It is widely used in vacuum coating, vacuum furnaces, electronics, chemicals, aviation, aerospace, metallurgy, materials, bio-medicine, atomic energy, space exploration and other high-tech fields.
It is widely used in vacuum coating, vacuum furnaces, electronics, chemicals, aviation, aerospace, metallurgy, materials, bio-medicine, atomic energy, space exploration and other high-tech fields.
