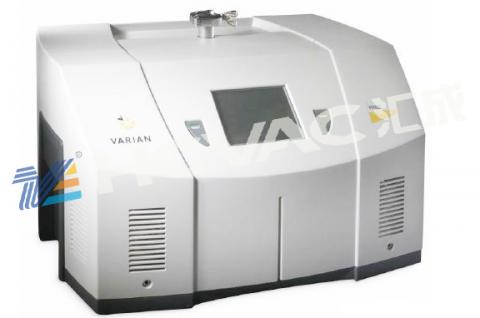

VS Series Helium Mass Spectrometer Leak is a wide range of sophisticated helium leak detectors, which contain high turbo molecular pump, built-in mechanical pump, an external mechanical pump, spectrometer tube, valve, leak detector electronics and operator interface, and optional functional components. VS MR15x and VS MD30x model leak can choose two-wheeled vehicle. All models are suitable for leak 100/115 VAC and 230 VAC.
Features:
• Multilingual and measurement units selection, optional Chinese interface
• 135 º ionization deflection (natural focal point) of a new mass spectrometry technology, metal seal structure
• New design of electronic circuits and signal processing
• Minimum leak rate, the sensitivity of the coverage range up to 12
• Quick clean helium and fast response
• High pressure test port, enabling large leak leak
|
Performance indicators |
PR02/PD03 |
MR15 and MD30 |
|
Performance |
Built- forepump |
Forepump external and trolley |
|
Forepump oil type mechanical pump |
DS-42， 2 m3/hr (34 l/m) |
DS-302， 14 m3/hr (232 l/m) |
|
Dry Scroll Pump |
Dry pump-2 m3/hr (34 l/m) |
TS-620 30 m3/hr (500 l/m) |
|
Minimum helium leak rate in the context of 1000ppm |
5×10-12 atm cc/sec；5×10-12 mbar l/s；5×10-13Pa m3/sec ，helium |
|
|
Maximum pressure test port |
13 mbar，10 Torr，1330 Pa |
|
|
Testing mouth for helium pumping speed |
1.8 l/s |
|
|
Calibration |
Automatic or manual ( internal or external ) |
|
|
Helium background reset |
Button is cleared, and has zero tracking function |
|
|
Interface |
High definition color display , TFT touchscreen |
|
|
Language Selection |
Chinese / English / French / German / Japanese / Korean / Spanish |
|
|
Loop Detection |
Programmable rough time / test time, set scrapped point |
|
|
Response time |
< 0.5 seconds |
|
|
Setpoint |
Standards ; five set points ; normally open or normally closed ; 3 leak rate points ; 1 pressure points ; an audio point |
|
|
Communication protocol |
RS-232 communication interface, 9600 baud ( 9-pin serial port ) |
|
|
Standard |
UL，CE，CSA |
|
|
Unlimited Remote Control ( optional ) |
2.4GHz ISM, 100m (328ft), 4AA battery / 5VDC power supply |
|
Helium mass spectrometer leak detector is applied to the industrial vacuum furnace, coating system, electron beam welding equipment;Power plant condenser, heat exchanger, the steam pipeline, underground cables;High energy physics synchrotron, cable, synchrotron radiation light source;Scanning electron microscope, semiconductor processing, membrane preparation, mass spectrometry, vacuum tubes, laser processing, etc.
