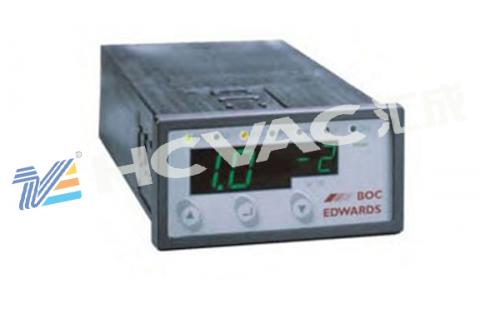

Active Digital Controller (ADC) is a compact single vacuum gauge controller and display. It has a clear LED display and simple push-button control. ADC can automatically identify compatible with vacuum gauge, load the appropriate look-up table, display commonly used vacuum pressure. There are two models available; standard ADC unit display only selected pressure, and enhanced ADC also includes a second vacuum gauge connected to two set points relays, two analog outputs and an RS232 interface.
Features and Benefits:
• Plug and Measure implies just plug the main power supply and connect a vacuum gauge, ADC will display the measured pressure
• ADC supports total measuring range 2000 to 1 x 10-9 mbar (1500 到 7.5 x 10-10 Torr) of Edwards vacuum gauge
• Bright LED display screen clearly legible even if the distance is also
• ADC adopt mbar, Torr, Pascal as Volt display unit
• Small 1/8 DIN chassis can be mounted in a panel or work bench
• Simple push-button control makes the operation extremely intuitive
|
Active vacuum gauge compatibility |
|
|
Standard |
APG100、APG-L、APG-MP、APG-M、APGX-H、APGX-L、WRG |
|
Enhanced |
up to two standard versions of the vacuum gauge, plus AIM-X, AIM-S and ASG |
|
Display |
high brightness green LED display (0.47 inches high) |
|
Units - mbar / Torr / Pa / Volts |
|
|
Power supply |
100 to 240V DC 47 to 63 Hz |
|
Dimension Data |
|
|
Panel cutout |
92 + 0.8 x 45 + 0.6 mm（3.62 inches x 1.77 inches）to DIN43700 |
|
Panel thickness |
1.5mm (0.06 inch) (minimum) |
|
Weight |
0.33Kg |
|
Working with data storage |
|
|
Operating temperature |
+0 to +40°C |
|
Storage temperature |
-30 to +70°C |
|
Maximum Operating humidity |
90% RH，non-condensing at 40 ° C |
|
Standard |
|
|
Electrical safety |
BS EN 61010-1 |
|
Electrical noise immunity |
BS EN 61326(industrial sites, Class B emissions) |
|
Flame retardant housing material |
UL94 V1 |
|
Enclosure rating |
IP40 |
|
Enhancements |
|
|
Two analog outputs |
0-10V DC |
|
Two set points relay, no voltage unipolar switch |
48V DC 1A / 24V DC 2A |
|
Serial output |
RS232 |
Used in industrial vacuum chamber, coating systems, electron beam welding apparatus; condensers in power plants, heat exchangers, steam lines, underground cables stamping; PHYSICS synchrotron beamline synchrotron radiation; scanning electron microscope, semiconductor processing, film preparation , mass spectrometry, vacuum tubes, laser processing and other fields.
