Non-conductive (NCVM) film pvd coating equipment adopts the resistance heating in the vacuum chamber, to melt and vaporize the metal wire (aluminum wire) cling to the resistance wire. The vaporized metal molecule deposit on the substrates to gain the smooth as well as high reflectivity film. Thus the surface of the items can be beautiful.
Vacuum evaporation coating machine has the features of reasonable structure, high pumping speed, short work cycle, high efficiency, easy operation, low power consumption, stable and uniform film, good film quality and other advantages. The equipment is mainly widely used in plastic electronic products: mobile phone shell surface, the phone keypad, computer, digital, electronic communications and other non-conductive plating film (NCVM).
We could design various of models of vacuum coating machines according to customer's requirements. Vacuum unit and electric control system can also be configured according to customer's requirements.
| Mode | HCRE-1200 | HCRE-1400 | HCRE-1600 | HCRE-1800 | HCRE-2000 |
| Vacuum chamber dimension | 1200×1500 | 1400×1950 | 1600×1950 | 1800×1950 | 2000×1950 |
| Film type | Semitransparent film, non-conducting film, gold, silver, red, blue, green, purple, seven color, etc. | ||||
| Power source supply | Thermal evaporation power, ion bombard power, RF power | ||||
| Vacuum chamber structure | Vertical double/single door, horizontal single door, pump system postposition | ||||
| Vacuum system | Diffusion pump +Roots pump +Mechanical pump +Holding pump | ||||
| Ultimate vacuum | 8×10-4 pa（no-loading, net room） | ||||
| Pumping time | Pump from atmosphere to 5.0*10-2,≦6 minutes | ||||
| Workpiece motion mode | 6 axis/8 axis/9 axis Public rotation/Frequency control | ||||
| Control mode | Manual/Automatic all-in-one mode, Touching screen + PLC | ||||
| Remark | We can design the dimension of the vacuum chamber according to customer’s demand | ||||

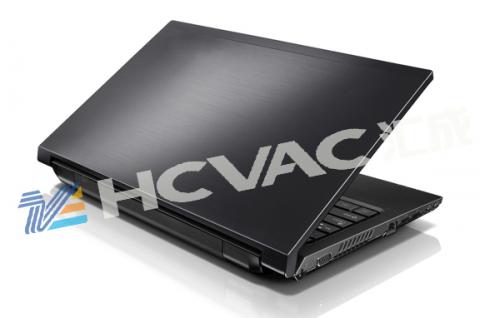

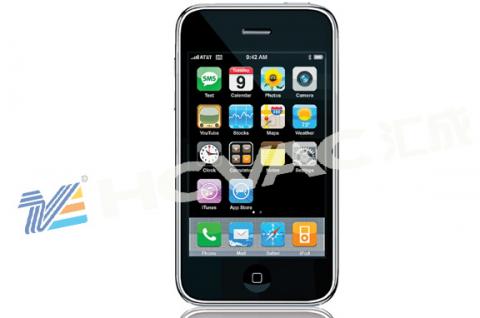

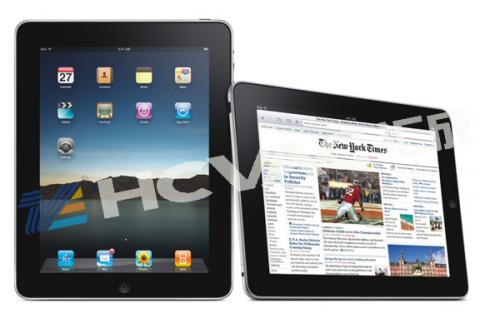

Widely used in plastic electronic products: mobile phone shell surface, the phone keypad, computer, digital, electronic communications and other non-conductive plating film (NCVM).
