The metal decoration ion coating machine is a high efficiency and environmental friendly production machine, it has features of high deposition speed,great ionization rate, large ion energy,easy operation,low cost and large productive capacity, etc.
The principle of vacuum arc ion coating is based on the cold cathode self sustaining arc discharge plasma evaporation, ion plating, combined the technology of pulse bias, improve the sedimentary particle energy and activity, strengthen the various properties of film layer. It can not only coating metal products but also coating non-metallic products;Can be plated metal film, including titanium nitride, titanium carbide, nitride zirconium, chromium nitride and so on, can be chemical compounds such as nickel, chromium, copper film, multilayer superhard film, multivariate compound membrane as well, can also be plated titanium nitride doped gold film, etc.Arc ion plating is widely applied in superhard coated tools, moulds, automobile wheel hub, golf clubs, watches and clocks, hotel supplies, sanitary ware, lamps and lanterns, glasses frame, metal products, like ceramic and glass decorative coating, etc.
Our company focus on improvement of circular arc evaporation source,and strive to develop high-performance rectangular plane arc evaporation source at the same time, we already have been assembling new machines.
| Mode | HCCA-1000 | HCCA-1150 | HCCA-1200 | HCCA-1600 | |
| Dimension | 1000×1200 | 1150×1200 | 1200×1300 | 1600×1800 | 1600×2200 |
| Coating | Gold Titanium Nitride, black titanium carbide,rainbow titanium oxide,wear-resisting coating,super-hard coating,diamond coating,metal decorative coating and so on. | ||||
| ,Power supply | DC power supply,MF power supply,electrical arc power supply,filament (power) supply, active power supply, plused bias power supply | ||||
| Target type | Multi-arc,MF twin targets or flat target can be choiced | ||||
| Vacuum chamber structure | Vertical single(side front) door(double water jacket type water cooling or sink type cooling), pump system postposition | ||||
| Vacuum system | Machanicial pump+Roots pump+Diffussion/Turbo pump+Holding pump | ||||
| Heating system | Room temperature to 350 ℃ adjustable and controllable(PID control) ,heating by stainless steel heater pipe | ||||
| Air system | Mass flow control system（1-4road） | ||||
| Ultimate vacuum | 6×10-4pa（No-loading,clean chambe） | ||||
| Pumping time | No-loading from air to 5×10-3pa ＜13mins. | ||||
| Pressure-keeping rates | 1h≤0.6pa | ||||
| Work piece rotary | Top rotary/bottom rotary+public rotation and self-rotations frequency conversion stepless controllable and adjustable,0-20 shift/min | ||||
| Control mode | Manual＋semi-automatic/touch screen＋PLC | ||||
| Remark | We can design the dimension of the equipment according to customers special technique requirement | ||||

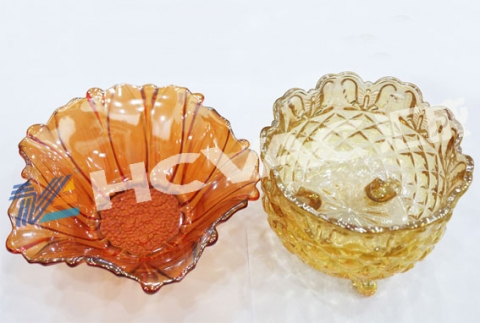

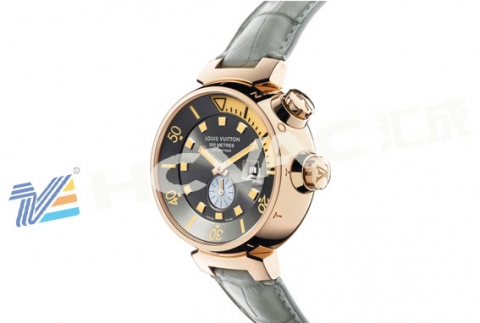

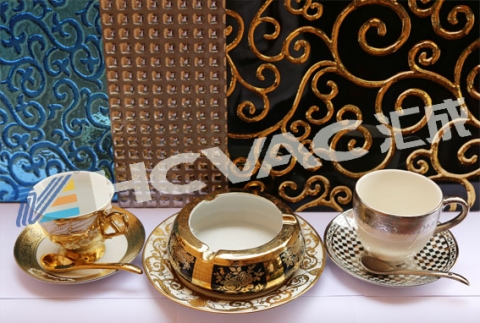

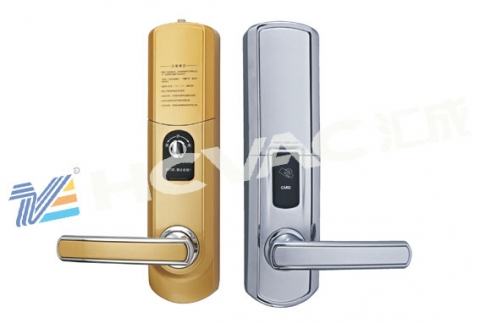

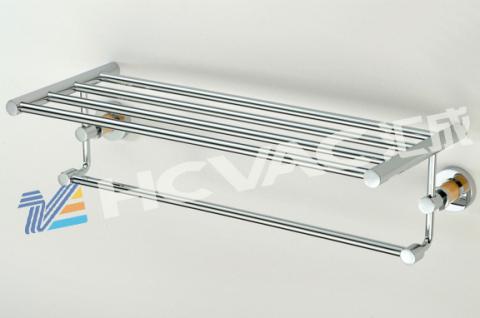

It is widely use for super-hard coating of tools and models, auto wheel, golf clubs, watches and clocks, hotel decorative parts, sanitary ware, lamps and lanterns, eye-glasses frame, metal products, ceramic and glass decorative coating, etc.
