The stainless steel sheet titanium gold vacuum coating machine is designed for stainless steel sheet to get a decorative coating by ion plating technique,the ion plating layer has a real metal texture,which is much different from chimical coating.
The chamber diameter of this series can be 1800-2300mm, and height can be 3600-7200mm,it can coat three sheets that size is 1220X4000mm at lest;with three sets of large power vacuum pumping systems, high pumping speed,short cycle time, with 34-56 pieces of roud arc target, they are installed reasonable, at the same time,it equipped with pulsed bias system, which make high adhesion coating,uniform color coating. Match with touch screen + PLC control system achieved full automatic of equipment, manual and auto can be switched any time, this make machine reliable and easy operation.The colors of this equipment can do are gold,silver,brown,black,rose gold,coffee,raibow,blue,etc decorative coatings.
It's widely used in metals, furniture, lights, hardware, auto parts and aircrafts etc, all the performance indicators of the stainless steel sheet titanium gold vacuum coating machine have reached international advanced level, it was exported to Europe and the United States developed the international market.
|
Mode |
HCCA-1800 |
HCCA-2000 |
HCCA-3000 |
HCCA-2000 |
HCCA-3000 |
HCCA-4000 |
HCCA-5000 |
|
Vacuum chamber dimension |
φ1800x2000 |
φ2000x2000 |
φ3000x3000 |
φ2000x6000 |
φ3000x6000 |
φ4000x8000 |
φ5000x10000 |
|
Vacuum system |
Mechanical pump+Roots pump+diffusion pump/Turbo molecular pump+holding pump |
||||||
|
Coating system |
arc evaporation source,coating auxiliary ion dedicated power supply |
||||||
|
Inflation system |
Mass flow meter |
Mass flow meter |
Mass flow meter |
Mass flow meter |
Mass flow meter |
Mass flow meter |
Mass flow meter |
|
Control mode |
Manual or automatic |
Manual or automatic |
Manual or automatic |
Manual or automatic |
Manual or automatic |
Manual or automatic |
Manual or automatic |
|
Ultimate vacuum |
5.0x10-4Pa |
5.0x10-4Pa |
5.0x10-4Pa |
5.0x10-4Pa |
5.0x10-4Pa |
5.0x10-4Pa |
5.0x10-4Pa |
|
Remark |
Above machine parameters for your reference only, specific according to customers' special requirement of practical process design. |
||||||

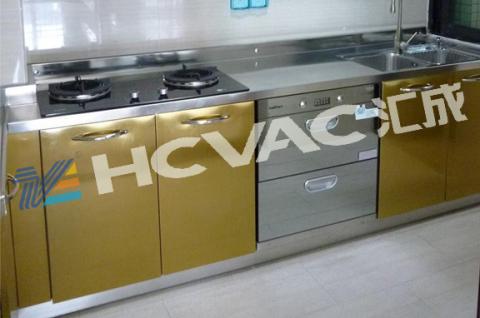

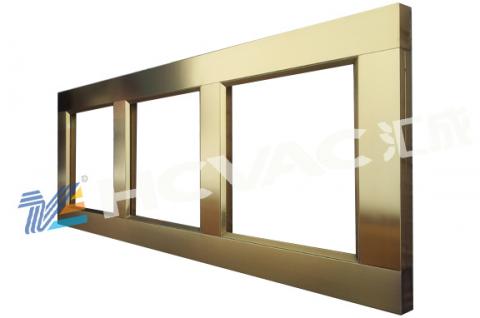

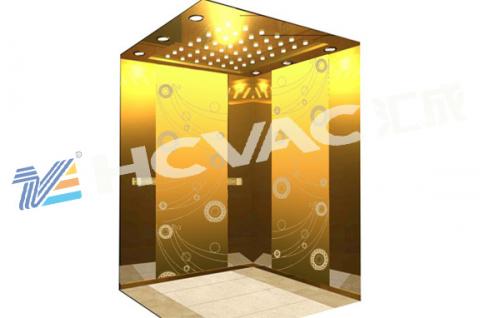

It's widely used in decorative metals, furniture, lights, hardware, auto parts and aircrafts etc.Can be plated with gold, silver, chrome,black, rose gold, coffee, rainbow, blue and other decorative film.
