Large stainless steel sheet and pipe PVD coating machine works in a vacuum chamber, by ion plating, by a gas discharge from the part of the evaporated material in the evaporation material particles or gas ion bombardment, while the vaporized material or reactant is deposited on the substrate. The glow discharge ion plating phenomenon, plasma and vacuum evaporation techniques combine the three, not only can significantly improve the quality of the film, but also expanded the scope of application of the film. The advantage is that the film adhesion, and good diffraction extensive membrane and so on. Multi-arc ion plating and ion plating in general has a big difference. Multi-arc ion plating arc discharge is used, rather than the conventional glow discharge ion plating deposition. Simply put, the principle of multi-arc ion plating is used as the cathode target evaporation source, target and by arc discharge between the anode of the housing, so that the target evaporation, thereby forming a plasma in space, the matrix deposition.

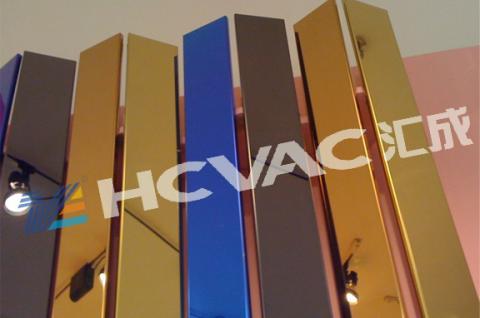

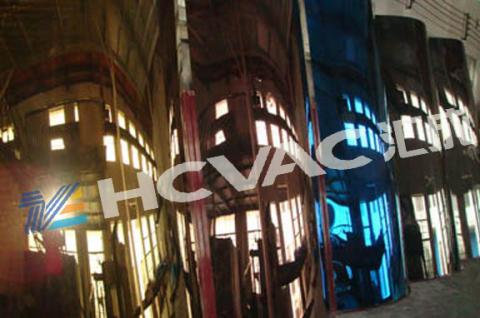

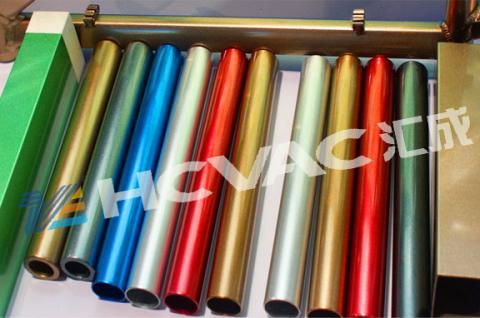

Applications: can plating stainless steel, chrome, titanium, tungsten and other metal films can also be alloy plating film or compounds, such as TiN \ TiAlN \ CrN film, horizontal multi-arc ion plating machine is mainly for large metal parts decorative film or functional film coating, suitable for stainless steel plate, stainless steel pipe, stainless steel doors and other surface coatings.

Features:
1. Equipment cryogenic ion secondary source, direct temperature without heating cold plating film, energy saving, productivity;
2. The maximum size of such devices to achieve the vacuum chamber φ5000X10000MM ( length );
3. Is on a large plate, pipe plating all kinds of decorative and functional film film film will be selected device.

Low-temperature ion assisted deposition source :

1. Large area of ​​plasma discharge, high ionization effects, improve bond strength, particularly strong adhesion;
2. The ion distribution, greatly improves the stability and uniformity of the film;
3. The ionization effect is good, no heating direct plating layer, removing the traditional heating device, saving more than 30%, saving more than 10% coating time, increase efficiency and achieve low-temperature coating;
4. Play ionization effect, whether it is metal -plated parts, non-ferrous metal products, non-metallic plating or coating directly;
5. The ionization effect is good, or whether it is all kinds of non-ferrous metal products, stainless steel products (such as copper, aluminum, zinc, magnesium, etc. ) directly without water plating plating layer;
6. Is on a large plate, pipe plating all kinds of decorative and functional film film film will be selected device.
