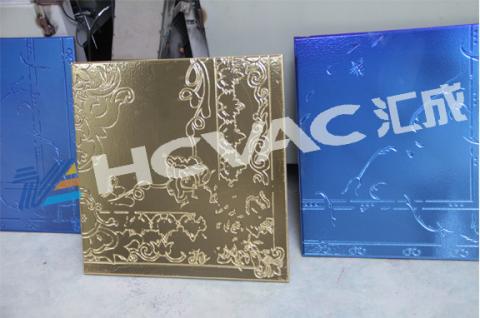

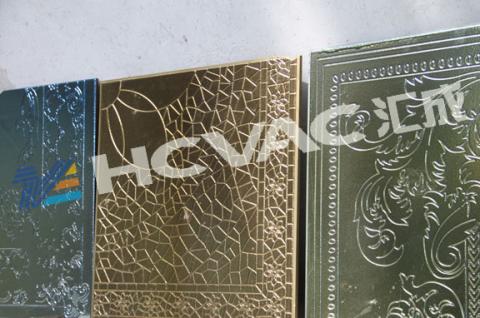

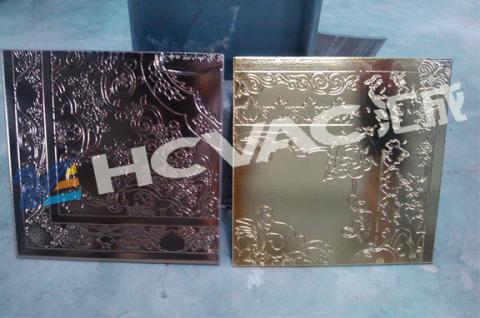

Ceramic tiles/ ceramic mosic vacuum coating machine mainly used in coating ceramic tile, ceramic plate, tile etc.This series vacuum coating machine mainly install cathod arc evaporation power supply, bias power supply, ion source for ion bombardment as well. Machine features: match with high efficient vacuum system, large capacity, high productivity and low production cost. It can coat imitation gold, also can get rose gold, coffee, copper, blue, magic rainbow color, black and so on.
It can get all sorts of color decorative pattern design by adpot decal paper and water soluble paint shade technology. After vacuum coating process, the ceramic tile will be more gloss, and the wear resistance index of the ceramic tile will be improve greatly.
|
Mode |
HCCA-1000 |
HCCA-1150 |
HCCA-1200 |
HCCA-1600 |
|
|
mension |
1000×1200 |
1150×1200 |
1200×1300 |
1600×1800 |
1600×2200 |
|
Coating |
Gold TiN, black TiC, rainbow TiO, wear resistant coating, supper hard coating, DLC coating, metal decorative coating and so on |
||||
|
Power supply system |
DC power supply, MF power supply, arc power supply,filament power supply,activation of the power supply, pulsed bias power supply |
||||
|
Target type |
Multi-arc target, MF twin targets or plane target as options |
||||
|
Vacuum chamber structure |
Vertical front door(Double water jacket type cooling or sink type cooling),the rear air exhaust system |
||||
|
Vacuum system |
Mechanical pump+Roots pump+diffusion pump/Turbo molecular pump+holding pump |
||||
|
Heating system |
Normal temperature to 350 centi-degree adjustable and controllable (PID control), radiation heating by stainless steel heating pipe |
||||
|
Inflation system |
Mass flow control(1-4 road) |
||||
|
Ultimate vacuum |
6×10-4pa（no-load,cleaning room） |
||||
|
Vacuum time |
Pumping time less than 13 minutes ,from atmospheric pressure to 310 -3 Pa mo-load |
||||
|
Pressure maintaining rate |
1h≤0.6pa |
||||
|
Workpiece rotation |
Up rotate or bottom rotate + common rotation frequency conversion stepless controlable and adjustable, 0 to 20 RPM |
||||
|
Control mode |
Manual+semi automatic/touch screen+PLC |
||||
|
Remark |
Vacuum chamber size can be customized according to the requirements of customers products and special process |
||||
Mainly used for coating tile, ceramic plate, widely used in ceramic floor tile, building ceramic tile, artistic ceramic tile,etc. Applicable to deposit (TiN, TiC,TiCr, etc) film on floor tile, wall brick, tile, waist line decoration, spelling a flower, roll tiles, mosaics and so on.
