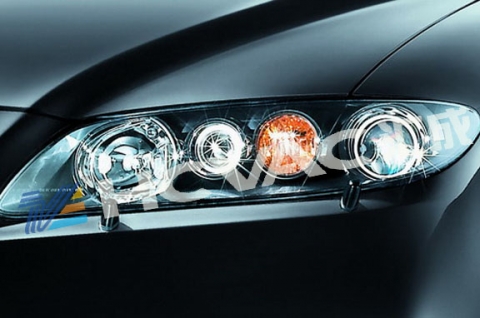

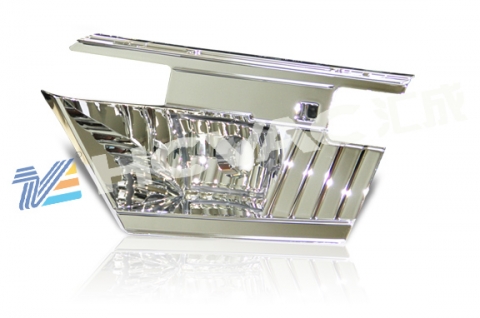

HCVAC provides machinery and vacuum coating processes for 3D parts which are used in the automotive lighting, interior lighting industries. Reflective coating and hydrophobic coating effect (lotus) technology used in car headlights taillights and typical indoor lighting.
The portfolio of applications includes sputtering and thermal evaporation of reflective and decorative metal layers with a top coat for corrosion protection applied by plasma-enhanced chemical vapor deposition (PECVD). Further applications are color coating via reactive magnetron sputtering, surface engineering of transparent layers, such as wipe-resistant layers and easy-to-clean layers (with a lotus effect), layer stacks for automotive mirrors and silver layer stacks for highest reflectance.
| Model | HCAL-1518 | HCAL-1820 |
| Chamber Size | Φ1500mm * H1800mm | Φ1800mm * H2000mm |
| Chamber | Vertical double doors | Vertical double doors |
| Rotation System | 2 x Ø 540 | 6 x Ø 540 8 x Ø 430 |
| Coating Area | 5.1 m²（Height 1.5m） | 15.2 m²（Height 1.63m） |
| Estimated Cycle Time | 4-9 min | 10-12 min |
| Machine Footprint | 5600mm×5200mm×2800mm | 7000mm×7000mm×3100mm |
| Coating Technology | Glow discharge/etching Thermal evaporation PECVD top coat SiOx/NOS SiOx/NOS Medium Frequency Polycold trap |
|
| Remark: we can design and configure machines according to your special requirements. | ||
