Continuous Magnetron Sputtering Coating Equipment is mianly used in flat glass, acrylic, PC, PE materials to get a high quality, multi-function metal film, electromagnetic shielding film, reaction film, transparent conductive film, antireflection (AR)&enhanced refectance film and LOW-E film etc. Our company can design the equipments as customers' requirements, provide complete equipment and process technique, full set of tunkey service to customers.
Features：
1.This coating line uses vacuum magnetron sputtering technique, twin cathode technique and MF sputtering technique, with advanced control system.
2.The production process is full automatic and continuous, the highest temperature of coated substrates can be up to 350℃. And it's adjustable accordint to requirements.
3.Chambers are made of SUS304, polished inner wall, chamber surface is painting treatment after polishing.
4.Chambers are separated by an independent gate valve, which is designed as slider damper. It can be cut off easily, thus make process stable. Convey is drived by magnetron motor, which can ensure the stability of convey. The speed of whole line is controlled by variable frequency adjustable speed moto, running speed is adjustable.
5.Electrical control systems:Touch screen and PLC automatic control, man-machine dialogue to achieve the data display, operation and control.
1. Ultimate vacuum : 7x10-4Pa.
2. Production cycle from 40 to 120 seconds/ frame
3. The basic frame size : 859 * 1500mm ( can be customized according to requirements )
4. Film uniformity : ± 2%
5. Film stability: up to international standards

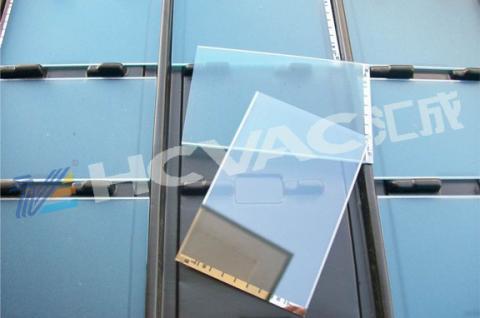

Glass, the conductive film, widely used in liquid crystal displays (LCD), solar cell, conductive film ITO glass microelectronics, optoelectronics, and various optics for flexible electrochromic device, flexible thin film solar cell, flexible light-emitting device.
